Easy-Touch® Pro
High Voltage
Cable Tester

The Easy-Touch Pro is a self-contained high voltage cable tester designed for easy integration within your manufacturing process. With an integrated Windows® OS and Cirris software, this tester provides a reliable combination of function and flexibility.

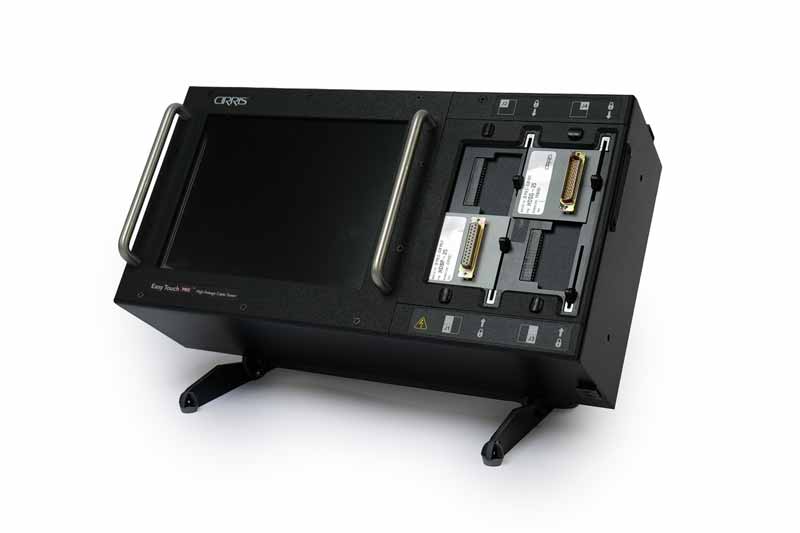

Easy-Touch Pro cable tester

The perfect synergy of features with the Easy-Touch Pro. Featuring a capacitive touch screen and interchangeable test adapters, this self-contained tester marries top-tier features with portability and affordability.

Program creation, editing, and testing are all fully supported in the Easy-Wire user interface. Extremely flexible testing including advanced capabilities such as testing switches and customizing high voltage parameters by net.

Store test results, measured values, serial numbers, and custom inputs in a searchable database. Create test reports, run reports, and labels. Choose between automatic printing or exporting.

The Easy-Touch Pro can be configured as an automation controller with the optional AST software.​

Features

high voltage test on touch screen

High Voltage

Perform high voltage dielectric withstand (DW) and insulation resistance (IR) testing up to 1500 VDC (2000 VDC and 1000 VAC optional).

easy-touch pro wireframe

All-in-one

Independent system able to move around the production floor to different test stations. Integrated Windows PC and 10.4” full-color, capacitive touch-screen display.

zener diodes

Thorough Testing

Test for continuity, isolation, resistors, diodes, capacitors, split twisted pairs, and perform 4-wire resistance measurements. Detects error location for opens and shorts.

assembling-harness

Expandable for Large Assemblies

Add test points with expansion boxes in 128 point increments. Test up to a maximum of 1024 test points per station.

attaching a Cirris adapter to the tester

Cirris Adapter System

Connect to your interface cables with Cirris interchangeable adapters that are available in a wide range common connector types.

easy-wire-test-list

Easy-Wire® Software

Powerful software provides efficient test set-up and retrieval, operator access based on login, flexible test operation and reporting, and a test record archive.

Specifications

Test Points

The standard base unit has 128 points; expandable to 1,024 points in 128-point increments

Low Voltage Test

2 Wire

  • Voltage: 4 VDC max
  • Current: 3 μA to 6 mA
  • Resistance: 0.1 Ω to 100 kΩ ± 1% ± 0.1 Ω, 100 kΩ to 5 MΩ ± 10%

4 Wire

  • Voltage: 4 VDC max
  • Current: 1 mA to 1 A
  • Wire Resistance: 0.001 Ω to 10 Ω ± 2% ± 0.001 Ω

Component Tests

  • Diodes: Silicon, LEDs, zeners with breakdown > 4 V
  • Resistors: 0.1 Ω to 100 kΩ ± 1% ± 0.1 Ω, 100 kΩ to 5 MΩ ± 10%
  • Capacitors: 5 nF to 100 μF ±10% ± 0.02 nF
  • Twisted Pairs: Verify proper pairing in twisted pair cables

High Voltage Test

Insulation Resistance Test
  • Voltage: 100 to 1500 VDC ± 5% (2000 VDC optional), 50 to 100 VDC ± 5V
  • Resistance: 5 MΩ to 1000 MΩ ± 10%
Dielectric Withstand Test
  • DC Voltage: 50 to 1500 VDC (to 2000 VDC optional) < 100V ± 5% ± 5V, ≥ 100 ± 5%; 10ms to 120s
  • AC Voltage (optional): 50 to 1000 VAC < 100V ± 5% ± 5V, ≥ 100 ± 5%; 1 to 7200 cycles
  • Current Limit: 0.1 mA to 1.5 mA ± 5%
  • Max Capacitance Per Net: 150 nF @ 300 VDC, 90 nF @ 500 VDC, 45 nF @ 1000 VDC, 30 nF @ 1500 VDC, 9.5 nF @ 1000 VAC
  • HV Energy Limit: 35 mJ
  • HV Charge Limit: 45μC

Max Points Per Net

512

Digital I/O

4 inputs, 6 outputs, 24 V max, open collector (sink) outputs

Test Point Interface

Cirris Adapter System

User Interface

  • Built-in PC with Windows 10®
  • Capacitive touchscreen 10.4” full-color display

Power

115 / 230 V 50/60 Hz

Dimensions (width x height x depth)

  • Main unit: 17.5 x 5 x 9 in. (44.5 x 13 x 23 cm)
  • Add-on box: 6.5 x 5 x 9 in. (16.5 x 13 x 23 cm)

Weight

  • Main unit: 18 lbs (8.2 kg)
  • Add-on box: 6.5 lbs (2.9kg)

Datasheet

Icon

Easy-Touch Pro Datasheet

Version 2023.4.1  |  606.82 KB

Product Options

Easy-Touch Pro cable tester

Easy-Touch Pro Base Unit

Voltage and Test Point Options
  • 1500 VDC Base Unit with 128 points (C150-ETP) – Standard option
  • 1500 VDC Base Unit with 64 points (C1ETP-64)
  • 2000 VDC Base Unit with 128 points (C200-ETP)
  • 2000 VDC Base Unit with 64 points (C2ETP-64)
  • Low Voltage Base Unit with 128 points (C15L-ETP)

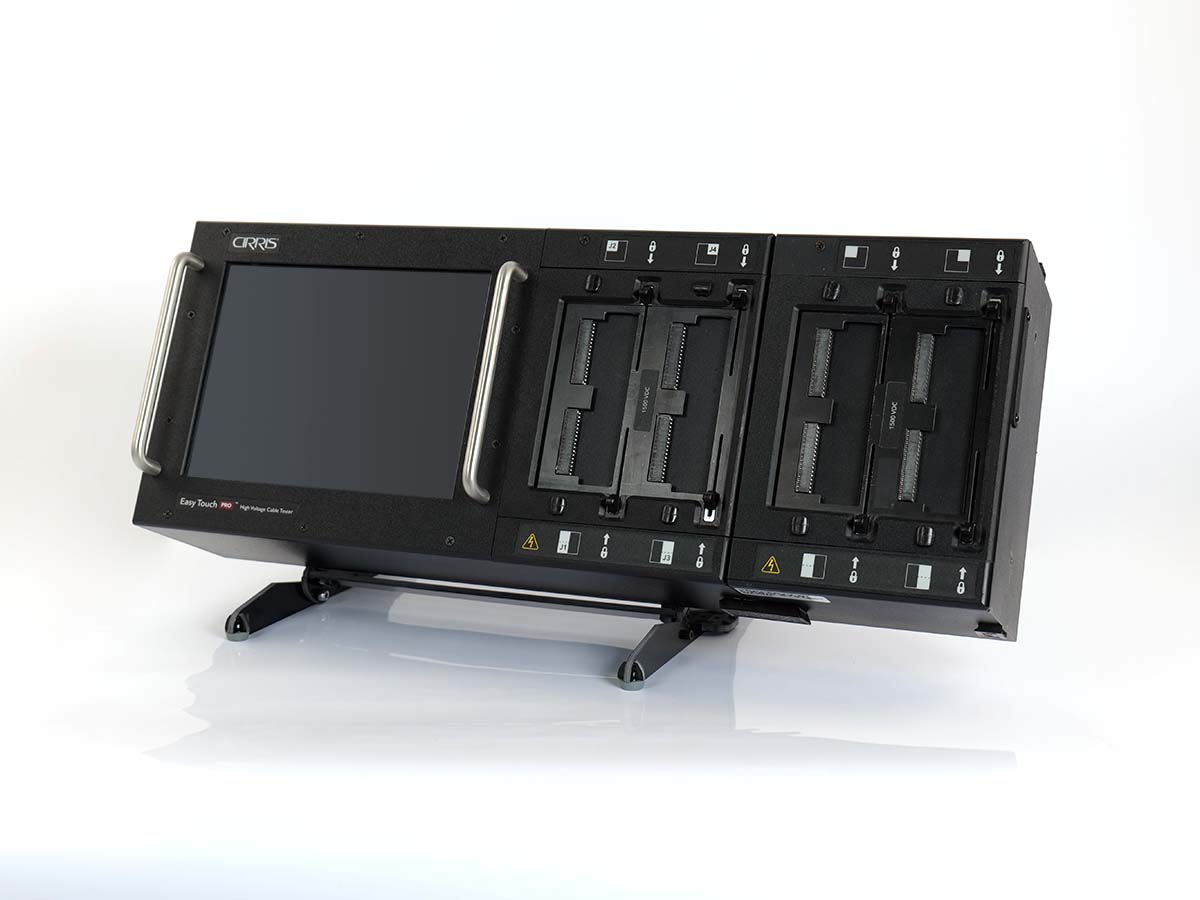

easy-touch pro expansion

Easy-Touch Pro Expansion Unit

Voltage Options
  • 1500 VDC Add-On Box 128 points (C150-ETPA)
  • 2000 VDC Add-On Box with 128 points (C200-ETPA)
  • Low Voltage Add-On Box with 128 points (C15L-ETPA)

1000 VAC (AC1K-ET)

  • Enables AC hipot voltage on the tester.
  • Allows the tester to perform AC hipot tests in addition to DC.

Cirris Server Software (LANL-EW or LAN-EW)

Allows compatible Cirris testers to use the same test information, critical to ensure good file revision control.

Performance Verification Kit (PCHK-ET)

Allows you to verify the calibration and proper operation of either the Easy-Touch Pro or Easy-Touch tester

Digital I/O (SIO-EW)

Start test with an external switch. Integrate a PLC or external equipment. Interface with palm buttons, light curtains, etc.

Cirris Tester Access API (CTA-EW)

  • Allows a custom application, rather than Easy-Wire, to control the Cirris tester.
  • The application can be written LabVIEW, Python, C, C#, C++, Delphi, and other programing platforms.
  • The application can run on the same station as the tester, or another network station.

OPC UA Server (OPC-EW)

While using the Cirris Easy-Wire Software, real-time tester status can be reported via the OPC UA, an accepted communication standard for integrating equipment and processes on a plant floor.

Easy-Touch Pro for Automation

AST automation software can replace Easy-Wire software to allow the Easy-Touch Pro to be tightly integrated in automated machine applications. Using the AST software, the Easy-Touch tester communication interface can expanded to common machine communication protocols such as Ethernet/IP, ModBus, Profibus, Profinet, and EtherCAT.

Scripting (SCPT-ET)

  • Provides increased flexibility for unique test processes.
  • Make highly customized reports or cable tags.
  • Extra control for external devices such as lamps, hold-down clamps, markers, etc.
  • Increased flexibility for testing switches, gas fuses, zener diodes, bi-color diodes, etc.
  • Verify color and lighting of LEDs.
  • Display operator selections to customize the test process.
  • Hipot different nets at different voltages.

Slide-Lock Scanner Upgrade (SLD-LK)

  • Available for older 1500VDC Easy-Touch testers that were not equipped with this feature at the factory.
  • Allows operators to lock adapters in place without using a removable cover plate.

Easy-Touch PC and Display Upgrade (EZTP-UPG)

  • Allows older Easy-Touch testers to have their PC, RAM, hard drive, and display upgraded to those used on the Easy-Touch Pro.
  • Provides a faster test experience and a responsive capacitive touchscreen.

Product Documentation & Software

Getting Started

User Manuals

Learn how to set up and operate your Easy-Touch Pro tester.

Icon

Easy-Touch Pro Getting Started Guide

Version 2023.2.0  |  1.33 MB

Icon

Easy-Touch Pro User Manual

Version 2022.2.0  |  7.73 MB



Easy-Wire® Software

Easy-Wire Software controls the Easy-Touch Pro tester. If networking, the Cirris Server Software must be the same version as the Easy-Wire Station Software.

Icon

Easy-Wire Station

Version 2023.4.3.8024  |  337.46 MB
MD5 Checksum: dcf558391ca70598caff50b6429956fe Cirris...

Supporting Documentation & Software

Cirris Server

Allows testers running Easy-Wire to be networked together storing test programs and test data in a central network location. Software version must be the same version as your Easy-Wire install. Contact your Cirris salesperson to purchase and receive unlock password.

Icon

Cirris Server Install

Version 2023.4.3.8024  |  306.82 MB
MD5 Checksum: f17d5278f999b5601a6a54e0444fe80f ...

Icon

Cirris Server Installation Guide

Version 2023.4.2  |  197.94 KB



Digital IO Module

Digital IO allows you to set up automated actions to make the test process safer and more efficient.

Icon

Digital I/O Module Getting Started Guide

Version 2017.12.05  |  170.52 KB



Easy-Touch Pro Performance Verification

Use this procedure with a Easy-Touch Pro Performance Verification kit to verify the calibration of your tester.

Icon

Easy-Touch Pro Performance Verification Manual

Version 2024.1.0  |  4.17 MB

Additional Documentation & Software

Easy-Wire Scripting

Scripting allows customization of the test process and reports. Scripting is an optional feature. Use Easy-Wire scripting when the tester is being controlled by Easy-Wire.

Icon

Easy-Wire Scripting Manual

Version 2017.4.0  |  1.80 MB



Cirris Tester Access API (CTA)

Allows the tester to be controlled by a third party application such as LabVIEW, C++, C#, Python, and Delphi.

Icon

Cirris Tester Access (CTA) User Manual

Version 2023.2.0  |  536.15 KB



Format Conversion Utility

This utility allows you to import test data from a spreadsheet or delimited text file.

Icon

Format Conversion Utility

Version 2019.1.1  |  608.35 KB



Easy-Touch Pro IT Administrative Addendum

Used by IT professional to set up networking and Windows printing.

Icon

Easy-Touch IT Addendum

Version   |  116.25 KB
