This table lists bare adapter boards by Cirris part number. For boards without a Cirris part number, contact us for availability.

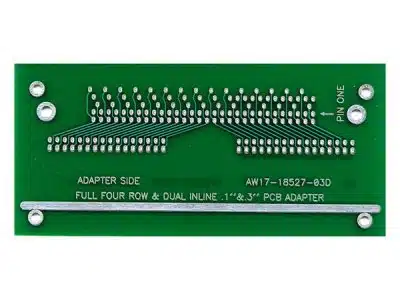

Bare Adapter Board Adapter Side AW17-18527-03D Full Four Row & Dual Inline .1" & .3" PCB Adapter

Cirris Part #

Board #

Size


Cirris Adapters Made From Board

Description

APBC-18420

AW 17-18420

Single

Mini Fit, Dual Row, 2-24 Positions

APBC-18428

AW 17-18428

Single

AD5P-20, 26

0.050″ SCSI III, D-shell – 14,20,26 Position Female

APBC-18459

AW 17-18459

Single

Clamp Adapter Board

APBC-18462

AW 17-18462

Double

Clamp Board, Double High, 64 Positions

APBC-18463

AW 17-18463

Single

Box Adapter Board, Single High

APBC-18507

AW 17-18507

Double

AH50-30, 40, 50, 60

.050″ Pitch, Dual Row,2 – 60 Positions

APBC-18508

AW 17-18508

Double

HHED-30, 34, 40, 44, 50, 60
HHED-SD, HHDS-SD
HHEF-40

0.1″ Pitch, Dual Row, 2 – 60 Positions

APBC-18510

AW 17-18510

Single

HHED-10, 14, 16, 20, 24, 26, SS
HHEF-10, 20, 26
AUSB-4A, 4B

0.1″ Pitch, Single Row, 1 – 26 Positions

APBC-18513

AW17-18513

Double

HHED-64
HVM2-64
HHR2-64

0.1″ Pitch, Dual Row, 2 – 64 Positions

APBC-18518

AW 17-18518

Single

HDBP-25, HDBS-25
HDPG-25, HDSG-25
HSIL-SS

D-Sub 25 Position, 0.45″ sq. Post on 0.156″ Spacing, Single Row

APBC-18519

AW 17-18519

Double

HDBP-37, HDBS-37
HDPG-37, HDSG-37
HSIL-SD

D-Sub 37 Position ,0.45″ sq. Post on 0.156″ Spacing, Double Row, w/Ground

APBC-18525

AW 17-18525

Single

AMJ6-06, 08
AMJK-SP
HBNC-02

Modular Phone Jack Plug 4, 6, 8, 10 pos. & Coaxial

APBC-18528

AW 17-18528

Double

AD5P-40, 50

0.050″ SCSI III, Dual Row, 60 Positions

APBC-18538

AW 17-18538

Single

HDBS-09, HDSG-09
HDBS-15, HDSG-15

D-Sub 9,15 Position ,0.45″ sq. Post on 0.156″ Spacing, Single Row

APBC-18551

AW 17-18551

Single

HMDP-15, HMPG-15
HMDS-15, HMSG-15

15 Position High Density D-Sub w/wo Ground Shell (Male & Female)

APBC-18552

AW 17-18552

Single

HMDP-26, HMPG-26
HMDS-26, HMSG-26

26 Position High Density D-Sub w/wo Ground Shell (Male & Female)

APBC-18553

AW 17-18553

Double

HMDP-44, HMPG-44
HMDS-44, HMSG-44

44 Position High Density D-Sub w/wo Ground Shell (Male & Female)

APBC-18554

AW 17-18554

Double

HMDP-62, HMPG-62
HMDS-62, HMSG-62

62 Position High Density D-Sub w/wo Ground Shell (Male & Female)

APBC-18558

AW 17-18558

Double

HBRM-50, HRMG-50
HBRF-50, HRFG-50

.085″ – 50 Pos. Centronics Type D-Sub w/wo Ground (Male & Female)

AW 17-18421

Vertical

Used with Double High
AHED type board

Vertical Board for 0.5mm and 20 mil spacing

AW 17-18453

Vertical

A8MM-50

50 position Vertical Board

AW 17-18450

Vertical

PCMCIA 15 position

Vertical Board

AW 17-18453

Vertical

A8MM-50

50 position Vertical Board

AW 17-18454

Vertical

A8MM-68

68 position Vertical Board

AW 17-18455

Vertical

AUSB-A4

USB Adapter "A" type, Vertical Board only

AW 17-18456

Vertical

AUSB-B4

USB Adapter "B" type, Vertical Board Only

AW 17-18457

Vertical

AFWR-06

Fire Wire Adapter, Vertical Board Only

AW 17-18461

Double

PCHK-H+

Capacitance Ck Board

AW 17-18468

Double

ALFH-60

LFH Style Adapters. 60 position only

AW 17-18470

Double

ADVI-30

AW 17-18501

Double

PCHK-00

Resistor Pull-up Board for 1M & 2000

AW 17-18502

Double

PCHK-H+

Zero Ohm Board

AW 17-18527

Double

APCD-60
APCU-60

1" dual in-line PCB Transition Conn.
.1" four row and .1" dual row PCB Trans. Conn.

AW 17-18540

Double

AVDP-34

34 Position Female - Rack & Panel V.35

AW 17-18541

Double

AVDS-34

34 Position Male - Rack & Panel V.35

AW 17-18556

Single

ABRM-14, ARMG-14
ABRM-24, ARMG-24
ABRF-14, ARFG-14
ABRF-24, ARFG-24

.085" - 14 Pos.Centronics, Fem.w & wo/grd.
.085" - 24 Pos.Centronics, Fem w & wo/grd.
.085" - 14 Pos. Centronics Male w & wo/grd.
.085" - 24 Pos. Centronics Male w & wo/grd.

AW 17-18557

Double

ABRM-36, ARMG-36
ABRF-36, ARFG-36

.085" - 36 Pos.Centronics T pe D-Sub wo grd. & w/grd
Both Male and Female versions

AW 17-18559

Double

ABRM-64, ABRF-64

.085" - 64 Pos.Centronics Type D-Sub
Both Male and Female versions

AW 17-18562

Double

ADIS-04, 08, 12, 16, 20

Discrete Wire adapter for loose wires.

AW 17-18563

Double

Generic Board

Custom Connector (.1 x .1 Spacing )

AW 17-18568

Single

ADBP-09, ADPG-09
ADBP-15, ADPG-15

Standard 9 Pos. D-Sub Fem. w & wo grd.
Standard 15 Pos. D-Sub Fem. w & wo grd.

AW 17-18569

Double

ADBP-50, ADPG-50
ADBS-50, ADSG-50

Standard 50 Pos. D-Sub, Fem. w & wo grd.
Standard 50 Pos. D-Sub, Male w & wo grd.

AW 17-18570

Double

A1KM-64, AV4W-64, A1KF-64

Adapters with (2) VME 32 pos. Conn.

AW 17-18572

Double

AH2M-SD

2MM Single or Dual Row Connectors

AW 17-18585

Vertical

AMDN-03, 04, 05, 06, 07, 08

Circular Mini Dins - Vertical Board

AW 17-18587

Single

AM13-W3

3 Coaxial Connectors with 10 pos.
sockets in shell (FEM)

AW 17-18594

Quad

AD5P-68, 80, 96, 100, 120

.050" SCSI III D-Sub, Female & Male adapter

AW 17-18595

Quad

AD5P-68, 80, 96, 100, 120

.050" SCSI III D-Sub,
Female & Male adapter

AW 17-18596

Quad

AH50-72, 80, 100, 120

.050" Dual Row headers

AW 17-18601

Quad

A8MM-68

.8 mm Quad Adapter for 68 pos. .8mm Conn.

AW 17-18602

Double

PCHK

Zero Ohm Adapter (In house)

AW 17-18603

Quad

AVMF-96

96 Pos. VME Euro Din Adapter

AW 17-18604

Quad

AMDP-78

78 Pos. High Density D-Sub Female

AW 17-18605

Quad

AMDS-78

78 Pos. High Density D-Sub Male

AW 17-18646

Double

A125-60

.125 Dual Row, 2-60 Position

AW 17-18958

Double

AEVM-35

AW 17-25050

Double

KZEN-01

Zener Adapter Kit for Touch 1
