CR to CH2 Transition Interface

CR to CH2 Transition Interface

Enable your CR tester to interface with fixturing built for the CH2 tester

Name Part Number Description
AC20-YC Ribbon Cable AC20-YC Quick and inexpensive cable interface for low voltage testing. 64-position, 0.1” IDC receptacle connector on one end to mate with Easy-Wire CR tester and two 34-position receptacle connectors on the opposite end to mate with two ACR-CH2 Converters.

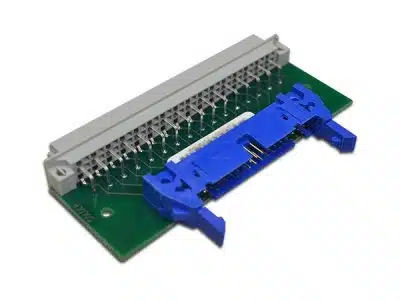

ACR-CH2 Converter ACR-CH2 Converts 34-position header to the 96-position Eurodin connector used on CH2; 32 pins live. Use with AC20-YC cable.
