The AC61-KF Conductor Discrete Male cable connects to your CH2 while the other end has 32 unterminated wires. Cirris designed this cable to be durable and adaptable to your specific fixturing needs.

  • 32 blunt-cut wires labeled for easy termination to your mating connector.
  • 22 AWG (19×34) stranded annealed silver plated copper wire.
  • Tested for series resistance, insulation resistance, and DWV at 1500 VDC.
  • Heavy wall extruded PTFE insulation provides isolation for IR and DWV tests.

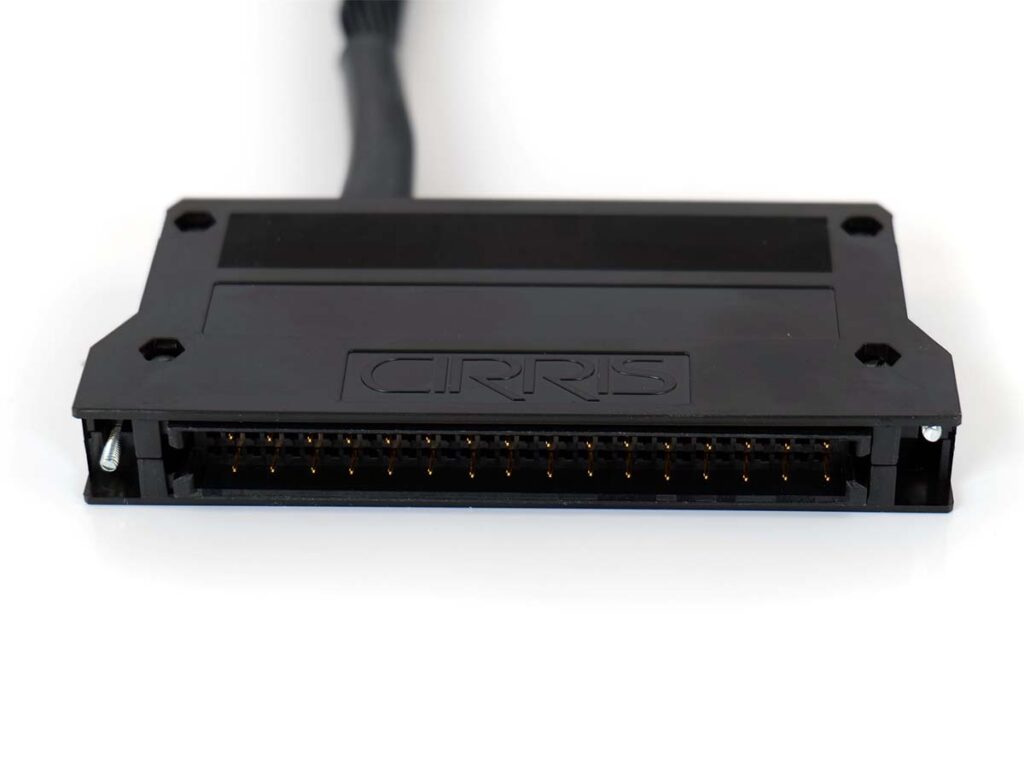

  • Plastic housing protects the terminals and relieves strain on attachments.
  • Configured to maximize creepage distance in the interface connector.

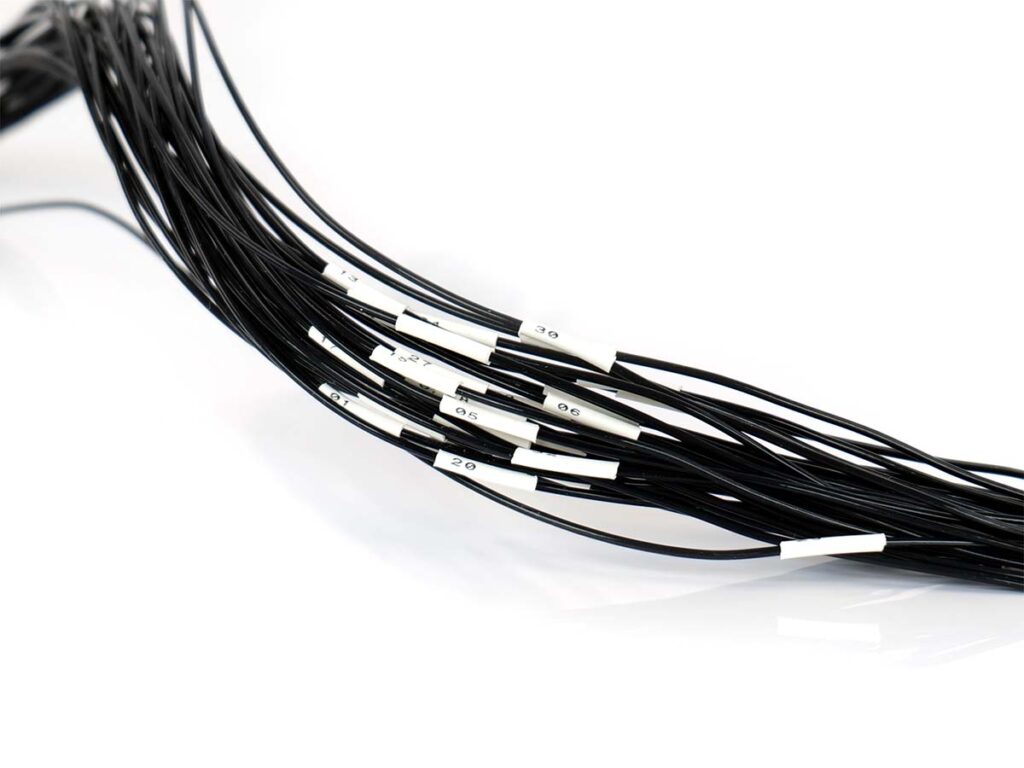

  • Terminal assignments are marked on a shrink tube label without burning or branding.
  • MIL-W-16878/5 EE compliable.

All Cirris products are built out of quality material and tested to ensure durability and efficiency.

Name Part Number Description

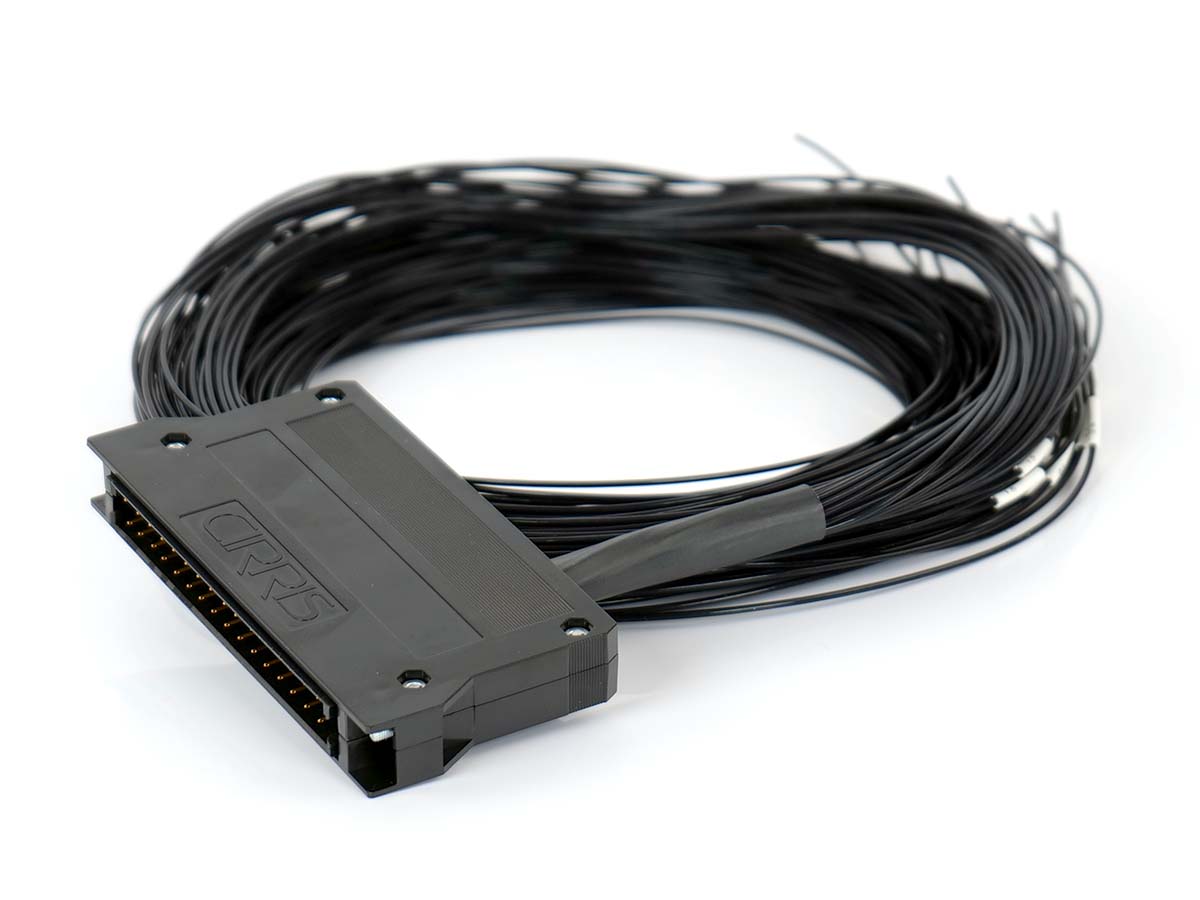

22 AWG cable with male connector on one end Conductor Discrete Male AC61-KF A 6′ long “pig tail” cable with a Eurodin connector on one end that plugs into the CH2 tester. On the other end the wires are labeled and un-terminated. Wire is 22 gauge 19 strand with Teflon insulation that is ideal for high voltage fixturing.

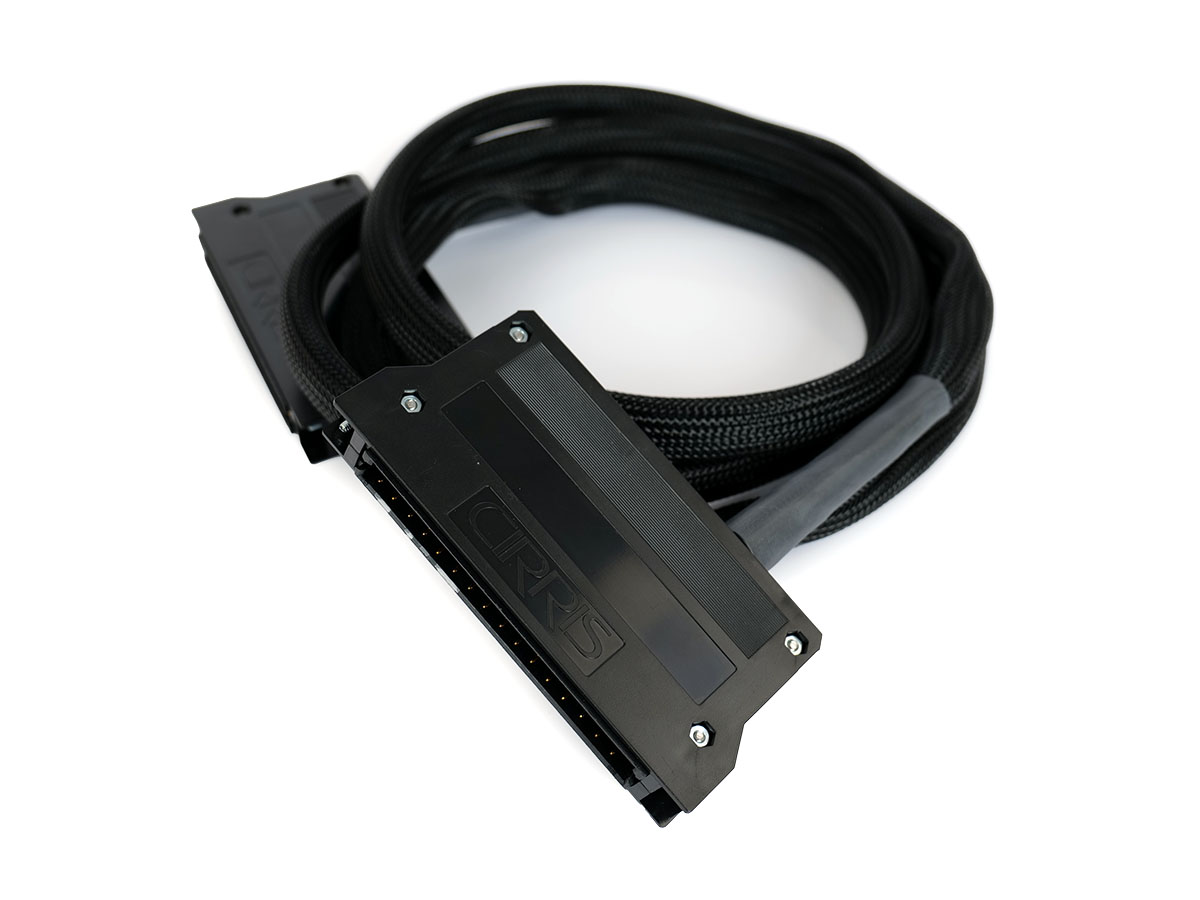

22 AWG cable with male connector on both ends Dual Conductor Discrete Male AC62-KF 6′ discrete 22 AWG cable with male connector on both ends.
For CH2, solder without hood Mating Connector ACCH-CO Mating Connector for CH2, solder without hood.
For CH2, solder with hood Mating Connector with hood ACCH-CH Mating Connector for CH2, solder with hood.

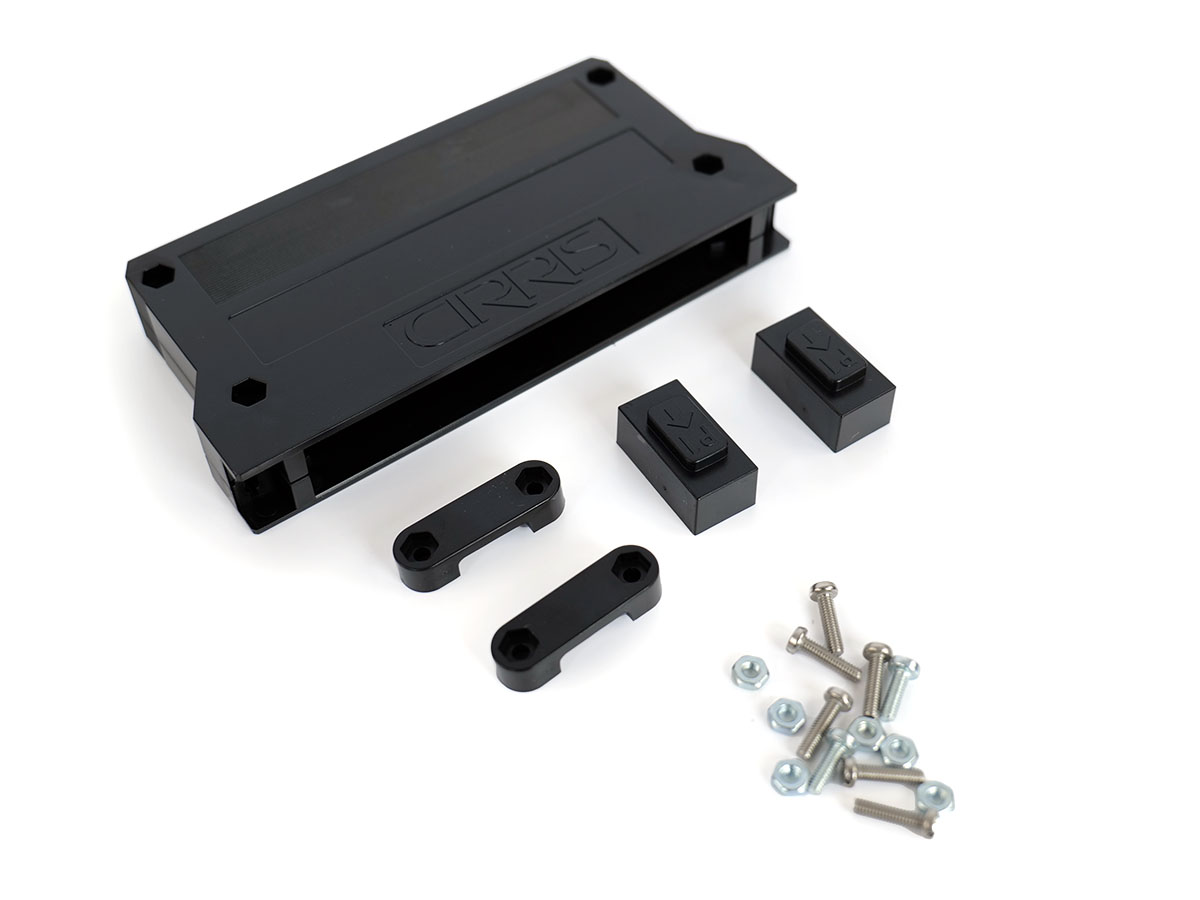

Mating Connector Crimp ACCH-DO Mating Connector Crimp for CH2.

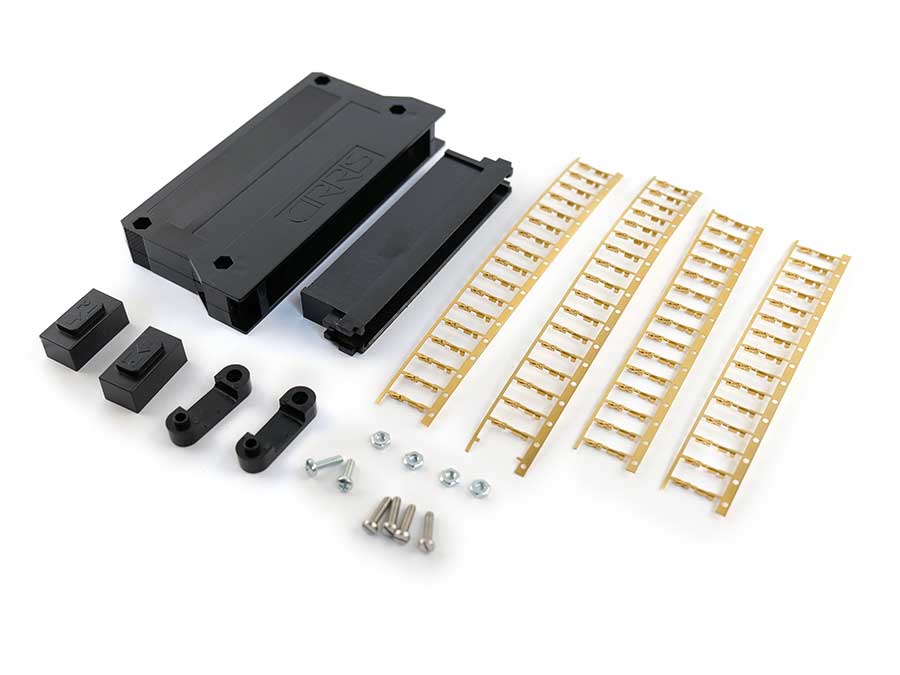

For CH2, crimp with hood Mating Connector Crimp with hood ACCH-DH Mating Connector Crimp with hood for CH2.
Dust Cover ACCH-DC Dust Cover for ACCH Connectors
