Easy Touch Pro

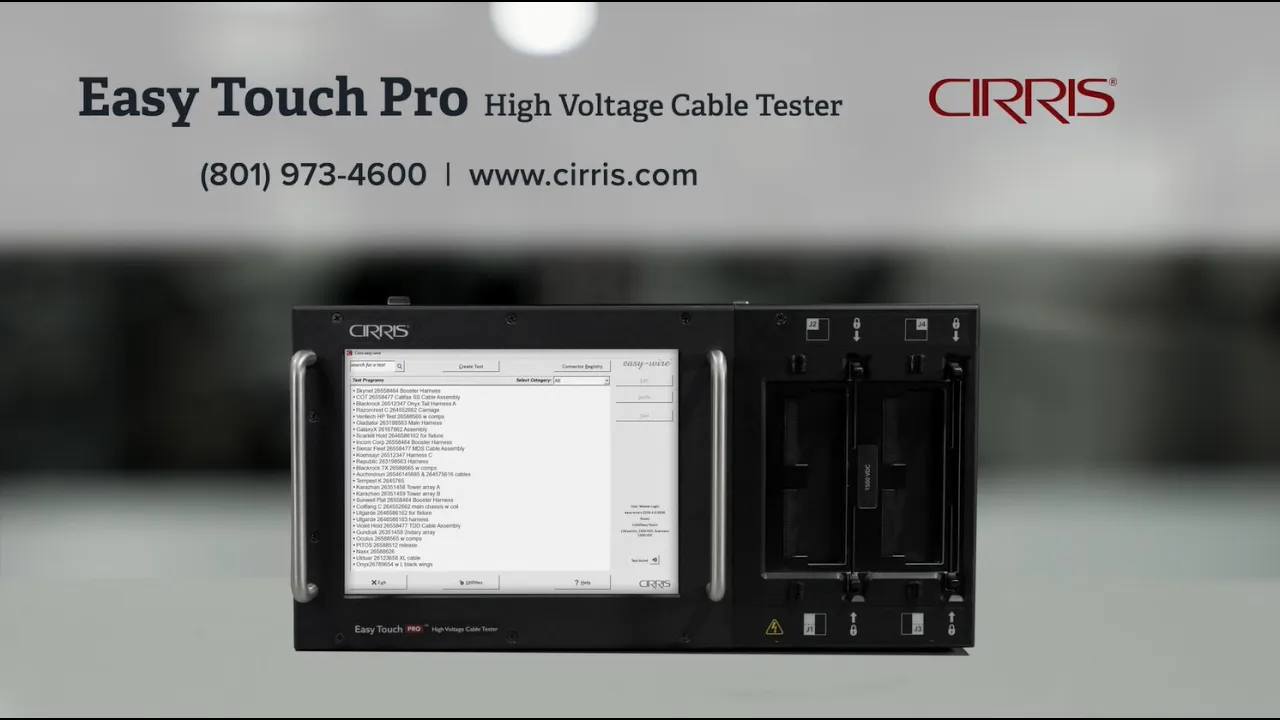

High voltage tester with built-in Windows operating system.

The Easy Touch Pro is a self-contained high voltage cable tester designed for easy integration within your manufacturing process. Powered by a Windows® and Cirris easy-wire software, this tester provides a good mix of function and flexibility.

Have a question?

Need to know price and availability?
Want to try a free demo unit?

Standalone Benchtop Tester

  • Up to 1024 points with add-on boxes (128 pts/box)
  • Interchangeable adapters
  • IPC-WHMA A-620 Compliant
    • Meets requirements for classes 1, 2, and 3.
  • 1500VDC
  • 1000VAC

Built-in Windows 10 PC

  • 10.4” full color capacitive touch-screen display
  • Runs Cirris easy-wire software
    • Access to easy-wire user help system
  • Hard-drive
  • Display Port
  • VGA
  • USB
  • Ethernet
  • Audio port

Reliable and Capable

  • Tests for
    • Opens
    • Shorts
    • Miswires
  • Verifies solder and crimp terminations
  • Measures resistance
  • Insulation resistance and DWV testing (1500VDC-1000VAC optional)
  • Tests Components
    • Resistors
    • Diodes
    • Capacitors
    • LEDs
    • Switches
    • Twisted pairs
  • 4-Wire “Kelvin” Testing capable
  • Optional custom scripting available



Test Points

128 points; expandable to 1,024 points in 128-point increments

Low Voltage Test

2 Wire

  • Voltage: 4 V max
  • Current: 3 μA to 6 mA
  • Resistance: 0.1 Ω to 100 kΩ ± 1% ± 0.1 Ω, 100 kΩ to 5 MΩ ± 10%

4 Wire

  • Voltage: 4 V max
  • Current: 1 mA to 1 A
  • Resistance: 0.001 Ω to 10 Ω ± 2% ± 0.001 Ω

Component Tests

  • Diodes: Silicon, LEDs, zeners with breakdown > 4 V
  • Resistors: 0.1 Ω to 100 kΩ ± 1% ± 0.1 Ω, 100 kΩ to 5 MΩ ± 10%
  • Capacitors: 5 nF to 100 μF ±10% ± 0.02 nF
  • Twisted Pairs: Verify proper pairing in twisted pair cables

High Voltage Test

Insulation Resistance Test

  • Voltage: 50 to 1500 VDC ± 5% ± 5 V (2000 VDC optional)
  • Resistance: 5 MΩ to 1000 MΩ ± 10%

Dielectric Withstand Test

  • Voltage: 50 to 1500 VDC ± 5% ± 5 V (2000 VDC optional, 50 to 1000 VAC optional)
  • Current Limit: 0.1 mA to 1.5 mA
  • Max Capacitance Per Net: 150 nF @ 300 VDC, 90 nF @ 500 VDC, 45 nF @ 1000 VDC, 30 nF @ 1500 VDC, 9.5 nF @ 1000 VAC
  • HV Energy Limit: 35 mJ
  • HV Charge Limit: 45μC

Max Points Per Net

512

Digital Input/Output

4 Inputs / 6 Outputs, 24 V Open collector, +10 V and +5 V each current limited to 100 mA

Test Point Interface

Cirris Adapter System

User Interface

  • Built-in PC with Windows 10®
  • Display: 10.4” Full-Color Capacitive Touch Screen display

Power

115 / 230 V 50/60 Hz

Size

  • Main unit: 17.5”w x 9”h x 5”d (44.5 cm x 23 cm x 13 cm)
  • Add-on box: 6.5”w x 9”h x 5”d (16.5 cm x 23 cm x 13 cm)

Weight

  • Main unit: 18 lbs (8.2 kg)
  • Add-on box: 6.5 lbs (2.9kg)



Easy Touch Voltage and Point Options

  • 1500VDC 128 points (C151-ET) - Standard option
  • Low Voltage 128 points (C15L-ET)
  • 1500VDC 64 points (C1ET-64)
  • 2000VDC 64 points (C2ET-64)
  • 2000VDC 128 points (C200-ET)

S1KV-AC AC option for Easy Touch (1000VAC)

  • Adds an AC voltage source to the high voltage (hipot)
  • Perform hipot tests that are in AC instead of DC
  • Call 1-800-441-9910 for details on how to upgrade. We will need your serial number and unit model when you call.

SIO-EW Digital I/O option for Easy Touch

  • Remotely "Start Test" with an external switch, start button, input from a PLC, etc.
  • Use Palm buttons, light curtains etc. as a hipot safety switch

SCPT-ET Scripting option for Easy Touch

  • Create complex tests that are easy for line workers to use
  • Make highly customized reports or cable tags
  • Control external devices such as lamps, hold-down clamps, markers, etc.
  • Test devices such as switches, gas fuses, zener diodes, bi-color diodes, etc.
  • Verify color and lighting of LEDs
  • Display prompt messages
  • Hipot different nets at different voltages

LAN-ET Server Software for easy-wire (up to 5 testers)

  • Provides centralized management of Security Settings, Test Programs, and Test Reports data
  • Manage your tester needs from any client connected to the Cirris Server Software
  • Server and Clients must be running the same version

SLD-LK Slide-Lock Scanner Upgrade (New 1500VDC Easy Touch testers ship with this upgrade)

  • Allows operators to lock adapters in place without using a removable cover plate
  • Hold adapters firmly in place to reduce connector wear

Performance Verification

  • The Easy Touch Performance Check Kit allows you to verify the calibration and proper operation of the Easy Touch tester.
  • For information on tester calibration, click here.
  • For documentation on Performance Check Kits for the Easy Touch click on the Documentation tab on this page.

Easy Touch Version Lookup

On the main menu screen of easy-wire, the verson number is located on the mid-right side of the window.
